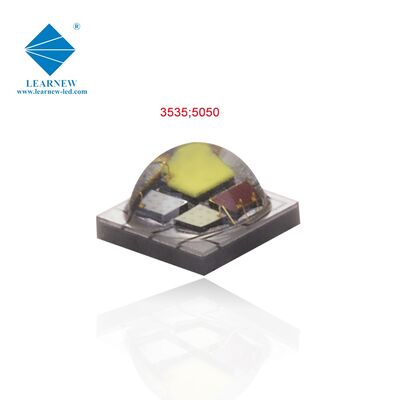

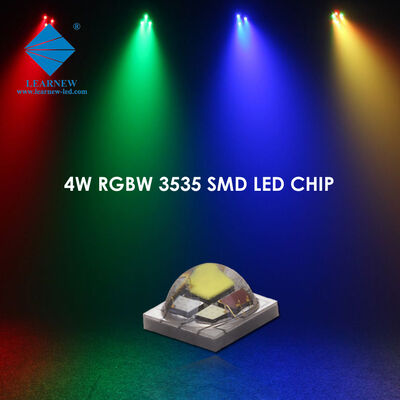

High Density LED Landscape Lighting / LED Stage Light 3535 5050 4Watt RGBW LED SMD Chip
Product Overview
This ceramic stent packaged LED chip features a compact structure designed for surface mount technology. It delivers high luminous flux and efficiency with excellent current impact resistance. The chip offers superior thermal conductivity and extended service life. Custom current and voltage specifications are available based on your project requirements.
Technical Specifications
| Style |
SMD LED |
| Circuit |
1PCS in series 1PCS in parallel 4 circuit |
| Whole Size |
3.5×3.5mm |
| Voltage |
R=2.0-2.4V G=3.0-3.4V B=3.0-3.4V W=3.0-3.4V |
| Lens |
R1.5mm |
| Substrate |
Ceramic |
Design Advantages
- Ceramic leadframe construction
- High ESD protection rating
- Standard A Class chips
- Excellent cost performance
- Gold wire bonding

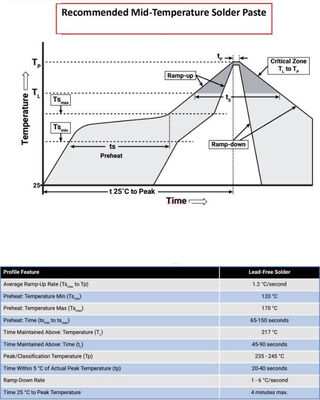

- Easy reflow soldering process

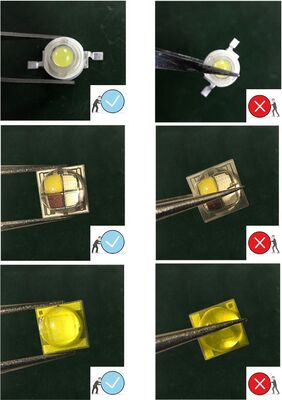

Detailed Product Images
Related UV LED Products
LEARNEW UV LED Chip Series
UVC LED 250-285nm (395-405nm): Ideal for hospitals, air conditioning systems, disinfection cabinets, water treatment equipment, water dispensers, sewage treatment plants, swimming pools, and food/beverage processing equipment. Also used in maternal/child supplies sterilization boxes, toothbrush sterilizers, and portable sterilizers.
UVB LED 305-315nm: Applied in medical industry for vitamin D3 production and treatment of metabolic bone diseases including osteoporosis.
UVA LED 365-395nm: Used for UV adhesive curing in LED growing markets, 3D printing, displays, electronic medical devices, and instrumentation. Also applied in UV coating curing for building materials, furniture, home appliances, automotive industries, and UV ink curing for printing/packaging applications.
